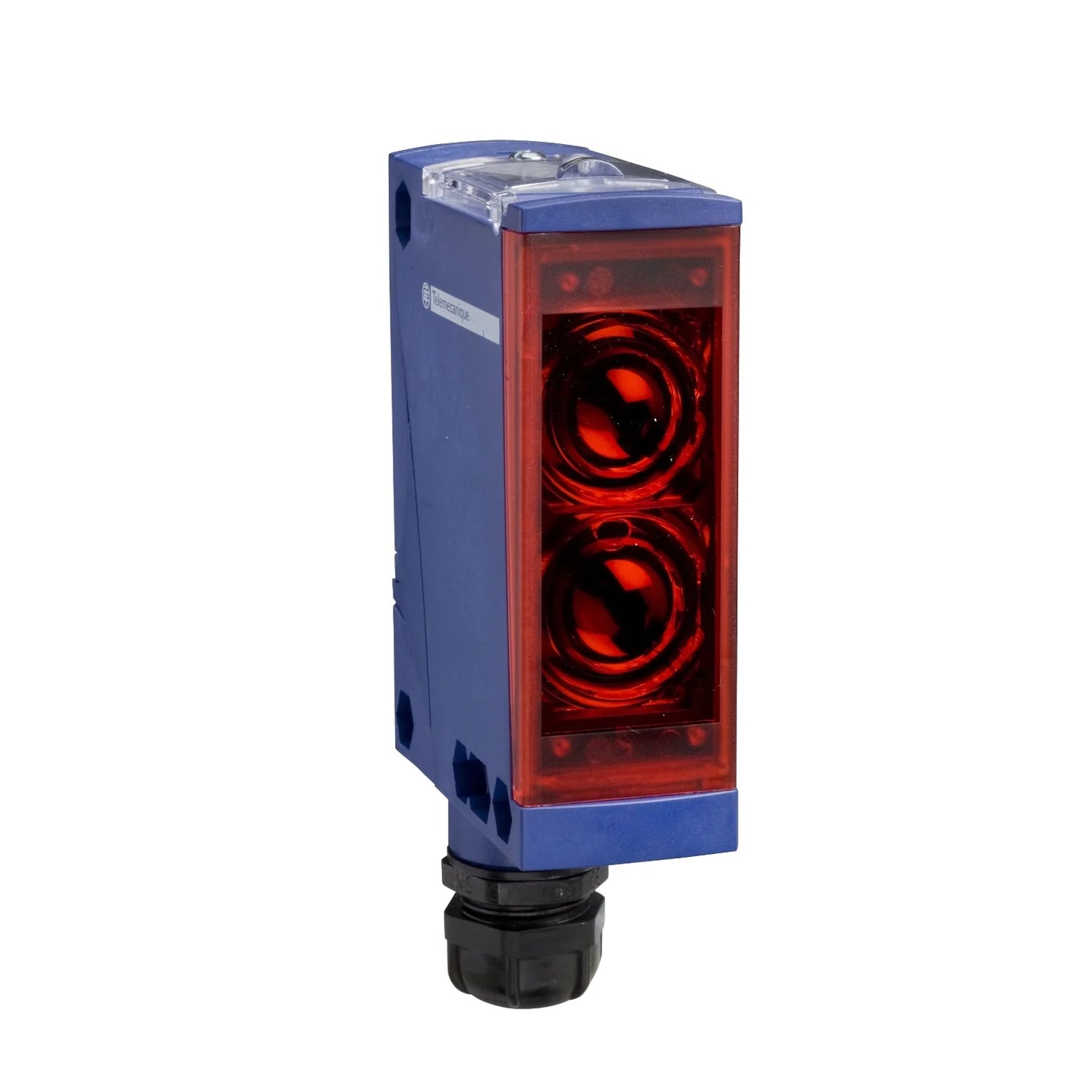

Compact design
Single mode function
Operating temperature range -25 to +55 °C
IP67 protection rating.

Attribute    Value
Sensor Style    Block
Detection Type    Diffuse
Detection Range    2.1 m
Output Type    Relay
Electrical Connection    5-Terminal Screw
Maximum AC Voltage    240V
Maximum DC Voltage    240V
Light Source    Infrared
IP Rating    IP65, IP67
Maximum Current    3 A, 500 mA
Response Time    <25 ms
Housing Material    PBT
Maximum Operating Temperature    +55°C
Minimum Operating Temperature    -25°C
